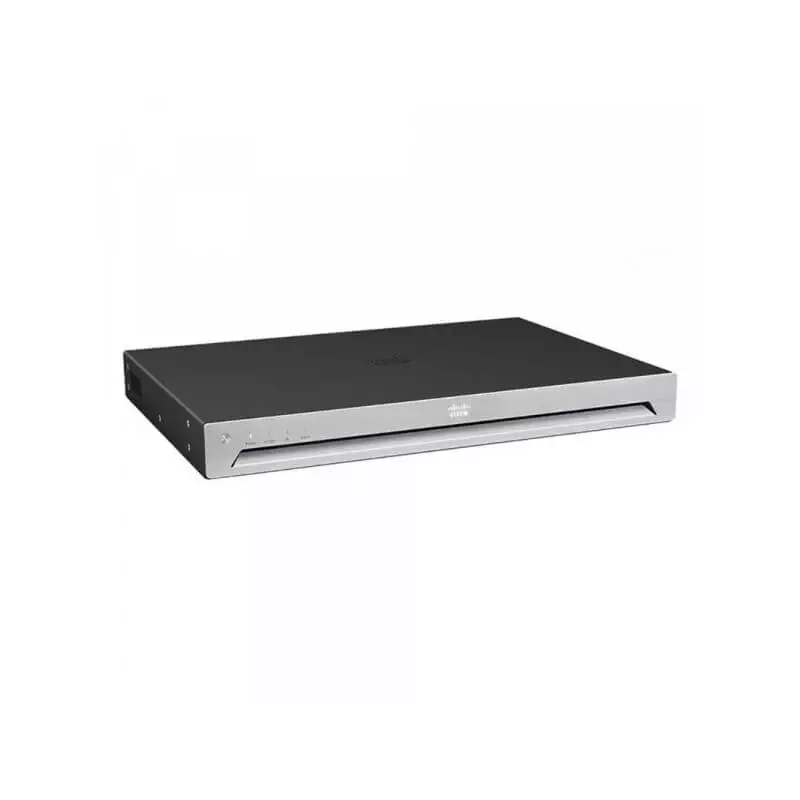

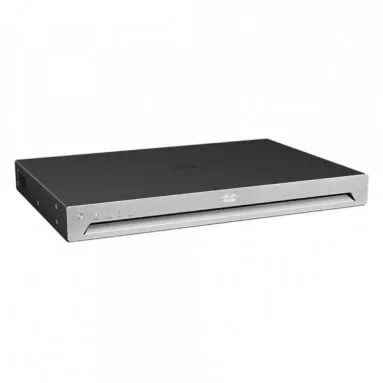

Система видеоконференцсвязи Cisco CS-CODEC-PRO-K7 Cisco Webex Codec Pro, No Radio, nonencrypted

Specification	Description
Software compatibility	Cisco Collaboration Endpoint (CE) Software Version 9.4 or later, or Cisco Webex Room OS
Bandwidth	Up to 6 Mbps point-to-point
Minimum bandwidth for resolution/frame rate	720p30 from 768 kbps 720p60 from 1152 kbps 1080p30 from 1472 kbps 1080p60 from 2560 kbps
Firewall traversal	Cisco Expressway™ technology H.460.18, H.460.19 firewall traversal
Video standards	H.264, H.265, H.263 for TANDBERG MXP interop only (check Admin Guide)
Video inputs (6)	2 HDMI inputs support formats up to maximum 1080p60 3 HDMI inputs support formats up to maximum UHD (3840 x 2160) @ 30 fps including HD1080p60 One 3G-SDI/HD-SDI input supports formats up to maximum 1080p60 Extended Display Identification Data (EDID) Consumer Electronics Control (CEC) 2.0
Video outputs (3)	2 HDMI outputs support formats up to 3840 x 2160@60 fps (4Kp60) 1 HDMI output supports formats up to 3840 x 2160@30 fps (4Kp30) CEC 2.0
Encode and decode	Video stream: Full HD 1080p60 Content stream: 4K 2160p15
Audio standards	G.711, G.722, G.722.1, G.729AB, 64 kbps and 128 kbps MPEG4 AAC-LD mono and stereo, OPUS
Audio features	High quality 20-kHz audio 8 separate acoustic echo cancellers 8-port audio mixer 8 assignable equalizers Automatic Gain Control (AGC) Automatic noise reduction Active lip synchronization
Audio inputs	8 microphones, 48V phantom powered, Euroblock connector, each with separate echo cancellers and noise reduction; all microphones can be set for balanced line level 3 HDMI, digital: stereo PC/DVD input
Audio outputs	6 balanced line level outputs, Euroblock connector 3 HDMI outputs HDMI input #1 supports Audio Return Channel (ARC) audio output to Quad Camera 1 line out for subwoofer (Quad Camera)
Dual stream	H.239 (H.323) dual stream BFCP Session Initiation Protocol (SIP) dual stream Supports resolutions up to 3840 x 2160p15 fps and 1080p60
Multipoint support	5-way embedded SIP/H.323 conferencing capability with MultiSite option
MultiSite features (embedded multipoint) (optional upgrade)	Adaptive SIP/H.323 MultiSite: ◦ 3-way resolution up to 1080p30 plus content up to 4Kp15 ◦ 4-way resolution up to 720p30 plus content up to 4Kp15 ◦ 5-way resolution up to 720p30 plus content up to 4Kp15 Full individual audio and video transcoding H.323, SIP, and VoIP in the same conference Support for presentation (H.239, BFCP) from any participant at resolutions up to 3840 x 2160p5 Best impression (automatic continuous presence layouts) Encryption and dual stream from any site
Protocols	H.323 SIP Cisco Webex
Embedded encryption	H.323 and SIP point-to-point Standards-based: H.235 v3 and Advanced Encryption Standard (AES) Automatic key generation and exchange
IP network features	DNS lookup for service configuration Differentiated Services (DiffServ) (quality of service [QoS]) IP-adaptive bandwidth management (including flow control) Automatic gatekeeper discovery Dynamic playout and lip-sync buffering H.245 dual-tone multifrequency (DTMF) tones in H.323 DTMF tones in SIP, RFC 4733 Date and time support using Network Time Protocol (NTP) Packet loss-based down speeding Uniform resource identifier (URI) dialing TCP/IP Dynamic Host Configuration Protocol (DHCP) 802.1X network authentication 802.1Q Virtual LAN 802.1p QoS and class of service Cisco Media Assure and ClearPath
Call control	Cisco Collaboration Cloud / Webex Cisco Unified Communications Manager (CUCM) ◦ Native registration CUCM ◦ Requires CUCM Version 10.5.2 or later with device pack for Room Kit Pro Cisco TelePresence Video Communication Server (VCS) ◦ Native registration with VCS Third-party H.323 gatekeepers and standards-based SIP proxies
IPv6 network support	Single call stack support for both H323 and SIP Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ Support for static IP address assignment, stateless auto-configuration, and DHCP v6
Security features	Management using HTTPS and SSH IP administration password Password to access administration features on Touch controller Disable IP services Network settings protection
Certificate management	Certificate Authority Proxy Function (CAPF) support for additional security Manufacturer-Installed Certificates (MIC) Locally Significant Certificates (LSC) X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported
Network interfaces Codec Pro	1 Ethernet (RJ-45) 10/100/1000 for LAN 2 Ethernet (RJ-45) 10/100/1000 for direct pairing with camera (camera control) 2 Ethernet (RJ-45) 10/100/1000 with PoE, 1 dedicated for direct pairing with Touch 10 Wi-Fi 802.11a/b/g/n/ac 2.4 GHz and 5 GHz for LAN 2x2 multiple input and multiple output (MIMO) Bluetooth 4.0 LE
Other interfaces	2x USB A port, USB-B, uUSB, factory reset pinhole
Operating temperature and humidity	0° to 40°C (32° to 104°F) ambient temperature 10% to 90% Relative Humidity (RH)
Storage and transport temperature	-20° to 60°C (-4° to 140°F) at RH 10% to 90% (noncondensing)
Dimensions	Codec Pro: Width: 17.1 in. (43.6 cm) Height: 2.6 in. (6.6 cm) Depth: 9.1 in. (23.1 cm) Weight: 7.3 lb (3.3 kg)
